  • 点击数:1746
  • 产品类别: Products Flange Bearings

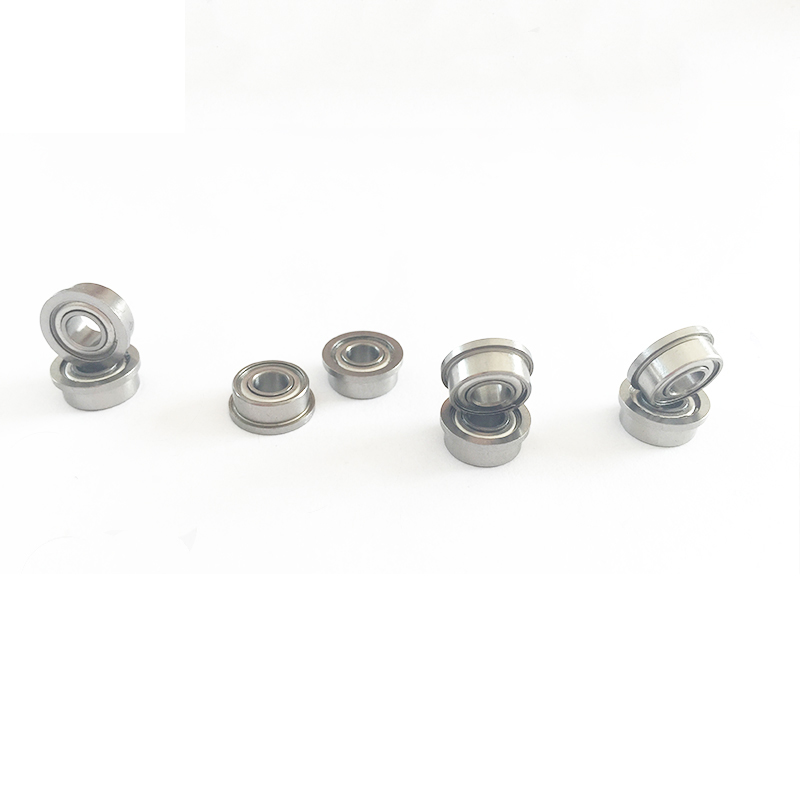

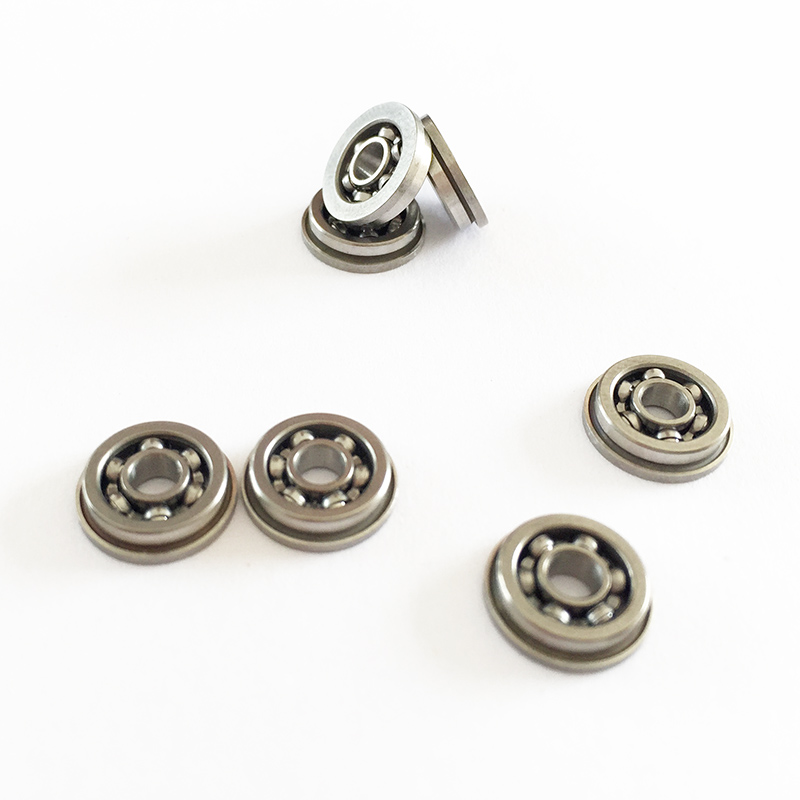

  • 产品描述:Flange Miniature Bearing Flanged ball bearings have a solid steel flange on the outer ring. When there is no connector at one end of the shaft and it needs to be fixed on the part, flange ball bearings or flange bearings are your best choice. Flange ball bearings make axial positioning easier and eliminate the need for bearing housings in applications. In addition, flanges can also help prevent axial movement of bearings when thrust loads are generated on them
 [←]  Thrust Ball Bearings
 [→]  Stainless Steel Bearing

  • Bearing No. SEAL TYPE Bore diameter(d) Outer diameter(D) Width(B) BALL SIZE(mm) BALL QTY weight(g)
    F681X open 1.5 4 1.2 0.6 7 0.1
    F681xzz Shield 1.5 4 2 0.6 7 0.14
    F691X open 1.5 5 2 0.6 6 0.2
    F691XZZ Shield 1.5 5 2.6 0.6 6 0.25
    F601X open 1.5 6 2.5 1.2 6 0.31
    F601XZZ Shield 1.5 6 3 1.2 6 0.4
    F682 open 2 5 1.5 0.8 6 0.15
    F682zz Shield 2 5 2.3 0.8 6 0.2
    F682-2RS Rubber seal 2 5 2.3 0.8 6 0.2
    MF52 open 2 5 2 0.8 6 0.14
    MF52ZZ Shield 2 5 2.5 0.8 6 0.2
    MF52-2RS Rubber seal 2 5 2.5 0.8 6 0.2
    F692 open 2 6 2.3 1.2 6 0.28
    F692ZZ Shield 2 6 3 1.2 6 0.35
    F692-2RS Rubber seal 2 6 3 1.2 6 0.35
    MF62 open 2 6 2.5 1.2 6 0.28
    MF62ZZ Shield 2 6 2.5 1.2 6 0.33
    MF62-2RS Rubber seal 2 6 2.5 1.2 6 0.33
    MF72 open 2 7 2.5 1.2 7 0.43
    MF72ZZ Shield 2 7 3 1.2 7 0.53
    MF72-2RS Rubber seal 2 7 3 1.2 7 0.53
    F602 open 2 7 2.8 1.2 7 0.5
    F602ZZ Shield 2 7 3.5 1.2 7 0.6
    F602-2RS Rubber seal 2 7 3.5 1.2 7 0.6
    F682X open 2.5 6 1.8 0.8 8 0.2
    F682XZZ Shield 2.5 6 2.6 0.8 8 0.35
    F682X-2RS Rubber seal 2.5 6 2.6 0.8 8 0.35
    F692X open 2.5 7 2.5 1.2 7 0.4
    F692XZZ Shield 2.5 7 3.5 1.2 7 0.55
    F692X-2RS Rubber seal 2.5 7 3.5 1.2 7 0.55
    MF82X open 2.5 8 2.5 1.588 6 0.52
    MF82XZZ Shield 2.5 8 2.5 1.588 6 0.52
    MF82X-2RS Rubber seal 2.5 8 2.5 1.588 6 0.52
    F602X open 2.5 8 2.8 1.588 6 0.61
    F602XZZ Shield 2.5 8 4 1.588 6 0.85
    F602X-2RS Rubber seal 2.5 8 4 1.588 6 0.85
    MF63 open 3 6 2 0.8 8 0.2
    MF63ZZ Shield 3 6 2.5 0.8 8 0.28
    MF63-2RS Rubber seal 3 6 2.5 0.8 8 0.28
    F683 open 3 7 2 1 8 0.32
    F683ZZ Shield 3 7 3 1 8 0.45
    F683-2RS Rubber seal 3 7 3 1 8 0.45
    MF83 open 3 8 2.5 1.2 7 0.51
    MF83ZZ Shield 3 8 3 1.2 7 0.67
    MF83-2RS Rubber seal 3 8 3 1.2 7 0.67
    F693 open 3 8 3 1.2 7 0.6
    F693ZZ Shield 3 8 4 1.2 7 0.8
    F693-2RS Rubber seal 3 8 4 1.2 7 0.8
    MF93 open 3 9 2.5 1.588 6 0.75
    MF93ZZ Shield 3 9 4 1.588 6 1.15
    MF93-2RS Rubber seal 3 9 4 1.588 6 1.15
    F603 open 3 9 3 1.588 6 0.84
    F603ZZ Shield 3 9 5 1.588 6 1.13
    F603-2RS Rubber seal 3 9 5 1.588 6 1.13
    F623 open 3 10 4 1.588 7 1.45
    F623ZZ Shield 3 10 4 1.588 7 1.65
    F623-2RS Rubber seal 3 10 4 1.588 7 1.65
    MF74 open 4 7 2 1 8 0.23
    MF74ZZ Shield 4 7 2.5 1 8 0.33
    MF74-2RS Rubber seal 4 7 2.5 1 8 0.33
    MF84 open 4 8 2 1.2 7 0.39
    MF84ZZ Shield 4 8 3 1.2 7 0.56
    MF84-2RS Rubber seal 4 8 3 1.2 7 0.56
    F684 open 4 9 2.5 1.588 7 0.65
    F684ZZ Shield 4 9 4 1.588 7 1
    F684-2RS Rubber seal 4 9 4 1.588 7 1
    MF104 open 4 10 3 1.588 8 0.96
    MF104ZZ Shield 4 10 4 1.588 8 1.33
    MF104-2RS Rubber seal 4 10 4 1.588 8 1.33
    F694 open 4 11 4 2 7 1.69
    F694ZZ Shield 4 11 4 2 7 1.75
    F694-2RS Rubber seal 4 11 4 2 7 1.75
    F604 open 4 12 4 2 7 2.19
    F604ZZ Shield 4 12 4 2 7 2.34
    F604-2RS Rubber seal 4 12 4 2 7 2.34
    F624 open 4 13 5 2.381 7 3.1
    F624ZZ Shield 4 13 5 2.381 7 3.2
    F624-2RS Rubber seal 4 13 5 2.381 7 3.2
    F634 open 4 16 5 2.381 7 5.24
    F634ZZ Shield 4 16 5 2.381 7 5.44
    F634-2RS Rubber seal 4 16 5 2.381 7 5.44
    MF85 open 5 8 2 1 8 0.25
    MF85ZZ Shield 5 8 2.5 1 8 0.34
    MF85-2RS Rubber seal 5 8 2.5 1 8 0.34
    MF95 open 5 9 2.5 1.2 8 0.54
    MF95ZZ Shield 5 9 3 1.2 8 0.58
    MF95-2RS Rubber seal 5 9 3 1.2 8 0.58
    MF105 open 5 10 3 1.2 8 0.58
    MF105ZZ Shield 5 10 4 1.2 8 0.62
    MF105-2RS Rubber seal 5 10 4 1.2 8 0.62
    MF115 open 5 11 4 1.588 8 0.62
    MF115ZZ Shield 5 11 4 1.588 8 0.62
    MF115-2RS Rubber seal 5 11 4 1.588 8 0.62
    F685 open 5 11 3 1.588 8 1.16
    F685ZZ Shield 5 11 5 1.588 8 1.93
    F685-2RS Rubber seal 5 11 5 1.588 8 1.93
    F695 open 5 13 4 2 8 2.31
    F695ZZ Shield 5 13 4 2 8 2.39
    F695-2RS Rubber seal 5 13 4 2 8 2.39
    F605 open 5 14 5 2.381 7 3.46
    F605ZZ Shield 5 14 5 2.381 7 3.75
    F605-2RS Rubber seal 5 14 5 2.381 7 3.75
    F625 open 5 16 5 2.778 7 4.95
    F625ZZ Shield 5 16 5 2.778 7 5.1
    F625-2RS Rubber seal 5 16 5 2.778 7 5.1
    F635 open 5 19 6 3.5 6 8.5
    F635ZZ shield 5 19 6 3.5 6 8.89
    F635-2RS Rubber seal 5 19 6 3.5 6 8.89
    MF106 open 6 10 2.5 1.2 10 0.55
    MF106ZZ shield 6 10 3 1.2 10 0.7
    MF106-2RS Rubber seal 6 10 3 1.2 10 0.7
    MF126 open 6 12 3 1.588 8 1.25
    MF126ZZ shield 6 12 4 1.588 8 1.66
    MF126-2RS Rubber seal 6 12 4 1.588 8 1.66
    F686 open 6 13 3.5 2 8 1.87
    F686ZZ shield 6 13 5 2 8 2.68
    F686-2RS Rubber seal 6 13 5 2 8 2.68
    F696 open 6 15 5 2.381 7 3.65
    F696ZZ shield 6 15 5 2.381 7 3.85
    F696-2RS Rubber seal 6 15 5 2.381 7 3.85
    F606 open 6 17 6 3.5 6 5.94
    F606ZZ shield 6 17 6 3.5 6 6.89
    F606-2RS Rubber seal 6 17 6 3.5 6 6.89
    F626 open 6 19 6 3.5 6 8.12
    F626ZZ shield 6 19 6 3.5 6 8.65
    F626-2RS Rubber seal 6 19 6 3.5 6 8.65
    F636 open 6 22 7 3.969 7 13.9
    F636ZZ shield 6 22 7 3.969 7 14.5
    F636-2RS Rubber seal 6 22 7 3.969 7 14.5
    MF117 open 7 11 2.5 1.2 9 0.59
    MF117ZZ shield 7 11 3 1.2 9 0.71
    MF117-2RS Rubber seal 7 11 3 1.2 9 0.71
    MF137 open 7 13 3 1.2 12 1.52
    MF137ZZ shields 7 13 4 1.2 12 2.01
    MF137-2RS Rubber seal 7 13 4 1.2 12 2.01
    F687 open 7 14 3.5 2 9 2.03
    F687ZZ shield 7 14 5 2 9 2.95
    F687-2RS Rubber seal 7 14 5 2 9 2.95
    F697 open 7 17 5 2 9 5.01
    F697ZZ shield 7 17 5 2 9 5.26
    F697-2RS Rubber seal 7 17 5 2 9 5.26
    F607 open 7 19 6 3.5 6 7.8
    F607ZZ shield 7 19 6 3.5 6 8.24
    F607-2RS Rubber seal 7 19 6 3.5 6 8.24
    F627 open 7 22 7 3.969 7 12.7
    F627ZZ shield 7 22 7 3.969 7 13.1
    F627-2RS Rubber seal 7 22 7 3.969 7 13.1
    F637 open 7 26 9 4.762 7 24.2
    F637ZZ shield 7 26 9 4.762 7 25.8
    F637-2RS Rubber seal 7 26 9 4.762 7 25.8
    MF128 open 8 12 2.5 1.2 12 0.7
    MF128ZZ shield 8 12 3.5 1.2 12 0.99
    MF128-2RS Rubber seal 8 12 3.5 1.2 12 0.99
    MF148 open 8 14 3.5 1.588 10 1.9
    MF148ZZ shield 8 14 4 1.588 10 2.19
    MF148-2RS Rubber seal 8 14 4 1.588 10 2.19
    F688 open 8 16 4 2 10 3.11
    F688ZZ shield 8 16 5 2 10 4.05
    F688-2RS Rubber seal 8 16 5 2 10 4.05
    F698 open 8 19 6 3.175 7 7.12
    F698ZZ shield 8 19 6 3.175 7 7.57
    F698-2RS Rubber seal 8 19 6 3.175 7 7.57
    F608 open 8 22 7 3.969 7 11.8
    F608ZZ shield 8 22 7 3.969 7 12.9
    F608-2RS Rubber seal 8 22 7 3.969 7 12.9
    F628 open 8 24 8 3.969 7 17.1
    F628ZZ shield 8 24 8 3.969 7 18.5
    F628-2RS Rubber seal 8 24 8 3.969 7 18.5
    F638 open 8 28 9 4.762 7 28.1
    F638ZZ shield 8 28 9 4.762 7 30.3
    F638-2RS Rubber seal 8 28 9 4.762 7 30.3
    F679 open 9 14 3 1.588 12 1.35
    F679ZZ shield 9 14 4.5 1.588 12 1.98
    F679-2RS Rubber seal 9 14 4.5 1.588 12 1.98
    F689 open 9 17 4 2 11 3.41
    F689ZZ shield 9 17 5 2 11 4.38
    F689-2RS Rubber seal 9 17 5 2 11 4.38
    F699 open 9 20 6 3.175 8 8.38
    F699ZZ shield 9 20 7 3.175 8 8.54
    F699-2RS Rubber seal 9 20 7 3.175 8 8.54
    F609 open 9 24 7 3.175 8 14.7
    F609ZZ shield 9 24 7 3.175 8 16
    F609-2RS Rubber seal 9 24 7 3.175 8 16
    F629 open 9 26 8 4.762 7 19
    F629ZZ shield 9 26 8 4.762 7 21.8
    F629-2RS Rubber seal 9 26 8 4.762 7 21.8
    F639 open 9 30 10 4.762 7 36.2
    F639ZZ shield 9 30 10 4.762 7 37.1
    F639-2RS Rubber seal 9 30 10 4.762 7 37.1
