  • 点击数:391
  • 产品类别: Products Angular Contact Bearings

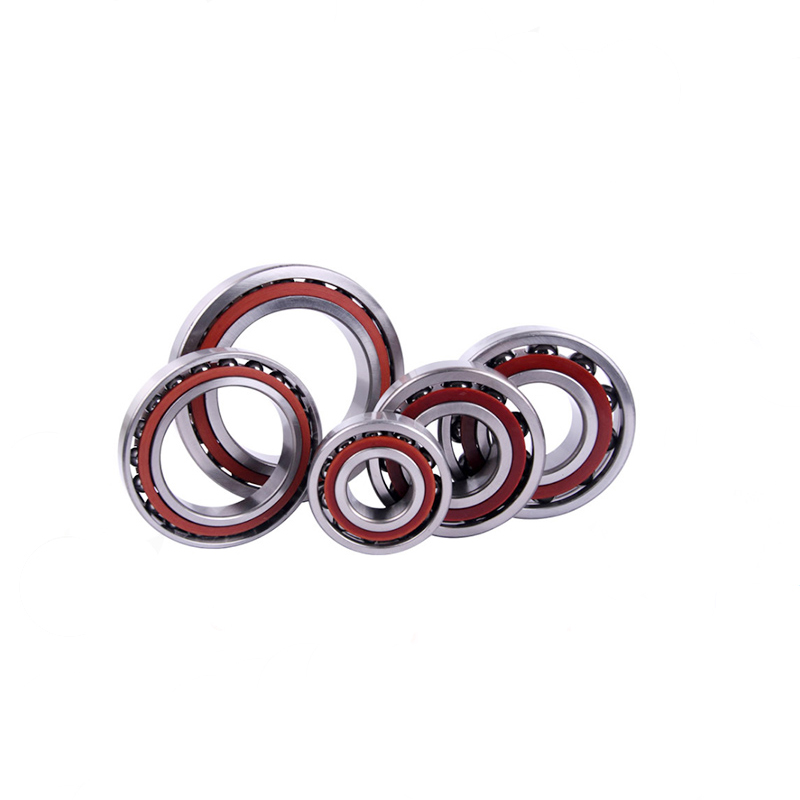

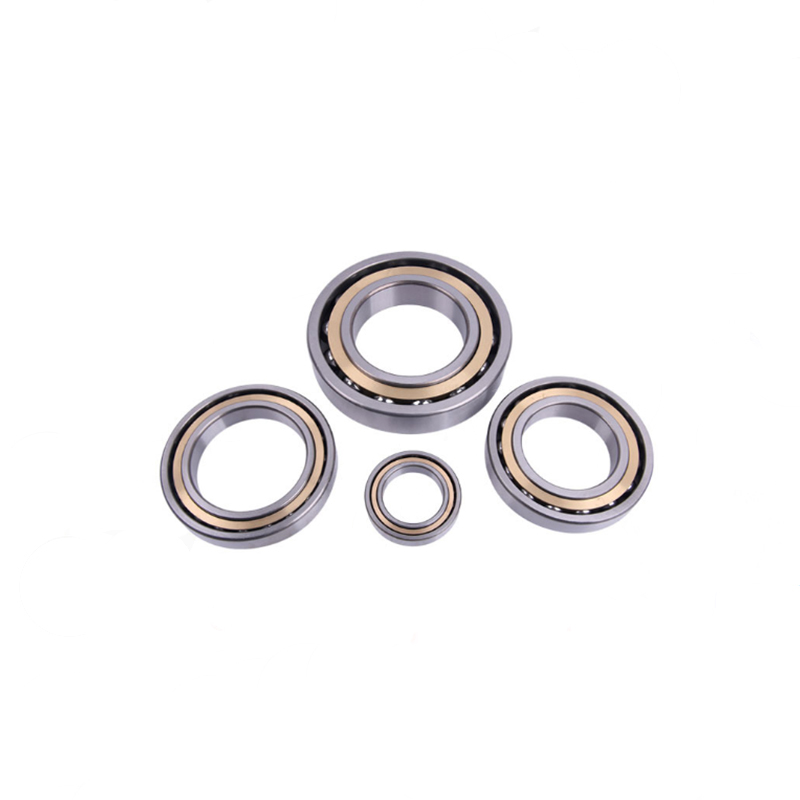

  • 产品描述:Angular Contact Ball Bearing Angular contact ball bearings can withstand both radial and axial loads simultaneously. Capable of operating at higher speeds. The larger the contact angle, the higher the axial bearing capacity. Angular contact ball bearings are widely used in machine tool spindles, high-frequency motors, gas turbines, centrifugal separators, small car front wheels, differential pinion shafts, booster pumps, drilling platforms, food machinery,indexing heads, repair welding machines,etc.
 [→]  Hybrid Ceramic Bearings
  • Bearing No. Dimension (mm) α=15° α=25° Weight(kg)
    d D B Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm) Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm)
    Cr Cor Grease Oil Cr Cor Grease Oil
    724C 4 13 5 1.28 0.47 95000 130000 - - - - 0.0036
    725C 5 16 5 2.1 0.8 90000 110000 - - - - 0.0047
    726C 6 19 6 2.77 1.26 80000 100000 - - - - 0.0047
    727C 7 22 7 2.96 1.16 80000 120000 - - - - 0.0047
    728C 8 24 8 3.71 1.37 67000 100000 - - - - 0.0047
    729C 9 26 8 4.1 1.66 50000 65000 - - - - 0.0047
    7200 10 30 9 5 2.35 40000 54000 4.65 2.2 29000 37000 0.031
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7202 15 35 11 8.65 4.55 33000 43000 8.1 4.25 24000 29000 0.048
    7203 17 40 12 10.9 5.9 29000 38000 10.2 5.5 21000 26000 0.07
    705C 5 14 5 1.7 0.5 100000 140000 - - - - 0.0036
    706C 6 17 6 2.03 0.77 90000 130000 - - - - 0.006
    707C 7 19 6 2.4 1.02 80000 120000 - - - - 0.006
    708C 8 22 7 2.96 1.16 70000 110000 - - - - 0.014
    709C 9 24 7 3.25 1.34 65000 100000 - - - - 0.016
    7000 10 26 8 5.3 2.45 47000 62000 5 2.35 34000 42000 0.021
    7001 12 28 8 5.8 2.95 40000 54000 5.4 2.75 29000 37000 0.024
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7002 15 32 9 6.6 3.7 35000 47000 6.1 3.45 26000 32000 0.035
    7003 17 35 10 7.3 4.45 31000 41000 6.75 4.15 23000 28000 0.045
    7004 20 42 12 11.1 6.6 26000 35000 10.3 6.1 19000 24000 0.079
    Bearing No. Dimension (mm) α=15° α=25° Weight(kg)
    d D B Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm) Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm)
    Cr Cor Grease Oil Cr Cor Grease Oil
    724C 4 13 5 1.28 0.47 95000 130000 - - - - 0.0036
    725C 5 16 5 2.1 0.8 90000 110000 - - - - 0.0047
    726C 6 19 6 2.77 1.26 80000 100000 - - - - 0.0047
    727C 7 22 7 2.96 1.16 80000 120000 - - - - 0.0047
    728C 8 24 8 3.71 1.37 67000 100000 - - - - 0.0047
    729C 9 26 8 4.1 1.66 50000 65000 - - - - 0.0047
    7200 10 30 9 5 2.35 40000 54000 4.65 2.2 29000 37000 0.031
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7202 15 35 11 8.65 4.55 33000 43000 8.1 4.25 24000 29000 0.048
    7203 17 40 12 10.9 5.9 29000 38000 10.2 5.5 21000 26000 0.07
    705C 5 14 5 1.7 0.5 100000 140000 - - - - 0.0036
    706C 6 17 6 2.03 0.77 90000 130000 - - - - 0.006
    707C 7 19 6 2.4 1.02 80000 120000 - - - - 0.006
    708C 8 22 7 2.96 1.16 70000 110000 - - - - 0.014
    709C 9 24 7 3.25 1.34 65000 100000 - - - - 0.016
    7000 10 26 8 5.3 2.45 47000 62000 5 2.35 34000 42000 0.021
    7001 12 28 8 5.8 2.95 40000 54000 5.4 2.75 29000 37000 0.024
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7002 15 32 9 6.6 3.7 35000 47000 6.1 3.45 26000 32000 0.035
    7003 17 35 10 7.3 4.45 31000 41000 6.75 4.15 23000 28000 0.045
    7004 20 42 12 11.1 6.6 26000 35000 10.3 6.1 19000 24000 0.079
    Bearing No. Dimension (mm) α=15° α=25° Weight(kg)
    d D B Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm) Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm)
    Cr Cor Grease Oil Cr Cor Grease Oil
    724C 4 13 5 1.28 0.47 95000 130000 - - - - 0.0036
    725C 5 16 5 2.1 0.8 90000 110000 - - - - 0.0047
    726C 6 19 6 2.77 1.26 80000 100000 - - - - 0.0047
    727C 7 22 7 2.96 1.16 80000 120000 - - - - 0.0047
    728C 8 24 8 3.71 1.37 67000 100000 - - - - 0.0047
    729C 9 26 8 4.1 1.66 50000 65000 - - - - 0.0047
    7200 10 30 9 5 2.35 40000 54000 4.65 2.2 29000 37000 0.031
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7202 15 35 11 8.65 4.55 33000 43000 8.1 4.25 24000 29000 0.048
    7203 17 40 12 10.9 5.9 29000 38000 10.2 5.5 21000 26000 0.07
    705C 5 14 5 1.7 0.5 100000 140000 - - - - 0.0036
    706C 6 17 6 2.03 0.77 90000 130000 - - - - 0.006
    707C 7 19 6 2.4 1.02 80000 120000 - - - - 0.006
    708C 8 22 7 2.96 1.16 70000 110000 - - - - 0.014
    709C 9 24 7 3.25 1.34 65000 100000 - - - - 0.016
    7000 10 26 8 5.3 2.45 47000 62000 5 2.35 34000 42000 0.021
    7001 12 28 8 5.8 2.95 40000 54000 5.4 2.75 29000 37000 0.024
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7002 15 32 9 6.6 3.7 35000 47000 6.1 3.45 26000 32000 0.035
    7003 17 35 10 7.3 4.45 31000 41000 6.75 4.15 23000 28000 0.045
    7004 20 42 12 11.1 6.6 26000 35000 10.3 6.1 19000 24000 0.079
    Bearing No. Dimension (mm) α=15° α=25° Weight(kg)
    d D B Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm) Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm)
    Cr Cor Grease Oil Cr Cor Grease Oil
    724C 4 13 5 1.28 0.47 95000 130000 - - - - 0.0036
    725C 5 16 5 2.1 0.8 90000 110000 - - - - 0.0047
    726C 6 19 6 2.77 1.26 80000 100000 - - - - 0.0047
    727C 7 22 7 2.96 1.16 80000 120000 - - - - 0.0047
    728C 8 24 8 3.71 1.37 67000 100000 - - - - 0.0047
    729C 9 26 8 4.1 1.66 50000 65000 - - - - 0.0047
    7200 10 30 9 5 2.35 40000 54000 4.65 2.2 29000 37000 0.031
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7202 15 35 11 8.65 4.55 33000 43000 8.1 4.25 24000 29000 0.048
    7203 17 40 12 10.9 5.9 29000 38000 10.2 5.5 21000 26000 0.07
    705C 5 14 5 1.7 0.5 100000 140000 - - - - 0.0036
    706C 6 17 6 2.03 0.77 90000 130000 - - - - 0.006
    707C 7 19 6 2.4 1.02 80000 120000 - - - - 0.006
    708C 8 22 7 2.96 1.16 70000 110000 - - - - 0.014
    709C 9 24 7 3.25 1.34 65000 100000 - - - - 0.016
    7000 10 26 8 5.3 2.45 47000 62000 5 2.35 34000 42000 0.021
    7001 12 28 8 5.8 2.95 40000 54000 5.4 2.75 29000 37000 0.024
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7002 15 32 9 6.6 3.7 35000 47000 6.1 3.45 26000 32000 0.035
    7003 17 35 10 7.3 4.45 31000 41000 6.75 4.15 23000 28000 0.045
    7004 20 42 12 11.1 6.6 26000 35000 10.3 6.1 19000 24000 0.079
    Bearing No. Dimension (mm) α=15° α=25° Weight(kg)
    d D B Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm) Basic Dynamic Load Rating(KN) Basic Static Load Rating(KN) Max Runout Speed(rpm) Max Runout Speed(rpm)
    Cr Cor Grease Oil Cr Cor Grease Oil
    724C 4 13 5 1.28 0.47 95000 130000 - - - - 0.0036
    725C 5 16 5 2.1 0.8 90000 110000 - - - - 0.0047
    726C 6 19 6 2.77 1.26 80000 100000 - - - - 0.0047
    727C 7 22 7 2.96 1.16 80000 120000 - - - - 0.0047
    728C 8 24 8 3.71 1.37 67000 100000 - - - - 0.0047
    729C 9 26 8 4.1 1.66 50000 65000 - - - - 0.0047
    7200 10 30 9 5 2.35 40000 54000 4.65 2.2 29000 37000 0.031
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7202 15 35 11 8.65 4.55 33000 43000 8.1 4.25 24000 29000 0.048
    7203 17 40 12 10.9 5.9 29000 38000 10.2 5.5 21000 26000 0.07
    705C 5 14 5 1.7 0.5 100000 140000 - - - - 0.0036
    706C 6 17 6 2.03 0.77 90000 130000 - - - - 0.006
    707C 7 19 6 2.4 1.02 80000 120000 - - - - 0.006
    708C 8 22 7 2.96 1.16 70000 110000 - - - - 0.014
    709C 9 24 7 3.25 1.34 65000 100000 - - - - 0.016
    7000 10 26 8 5.3 2.45 47000 62000 5 2.35 34000 42000 0.021
    7001 12 28 8 5.8 2.95 40000 54000 5.4 2.75 29000 37000 0.024
    7201 12 32 10 7.9 3.85 38000 50000 7.45 3.65 27000 34000 0.038
    7002 15 32 9 6.6 3.7 35000 47000 6.1 3.45 26000 32000 0.035
    7003 17 35 10 7.3 4.45 31000 41000 6.75 4.15 23000 28000 0.045
    7004 20 42 12 11.1 6.6 26000 35000 10.3 6.1 19000 24000 0.079
