公制微型轴承 MR 系列

公制微型轴承 MR 系列

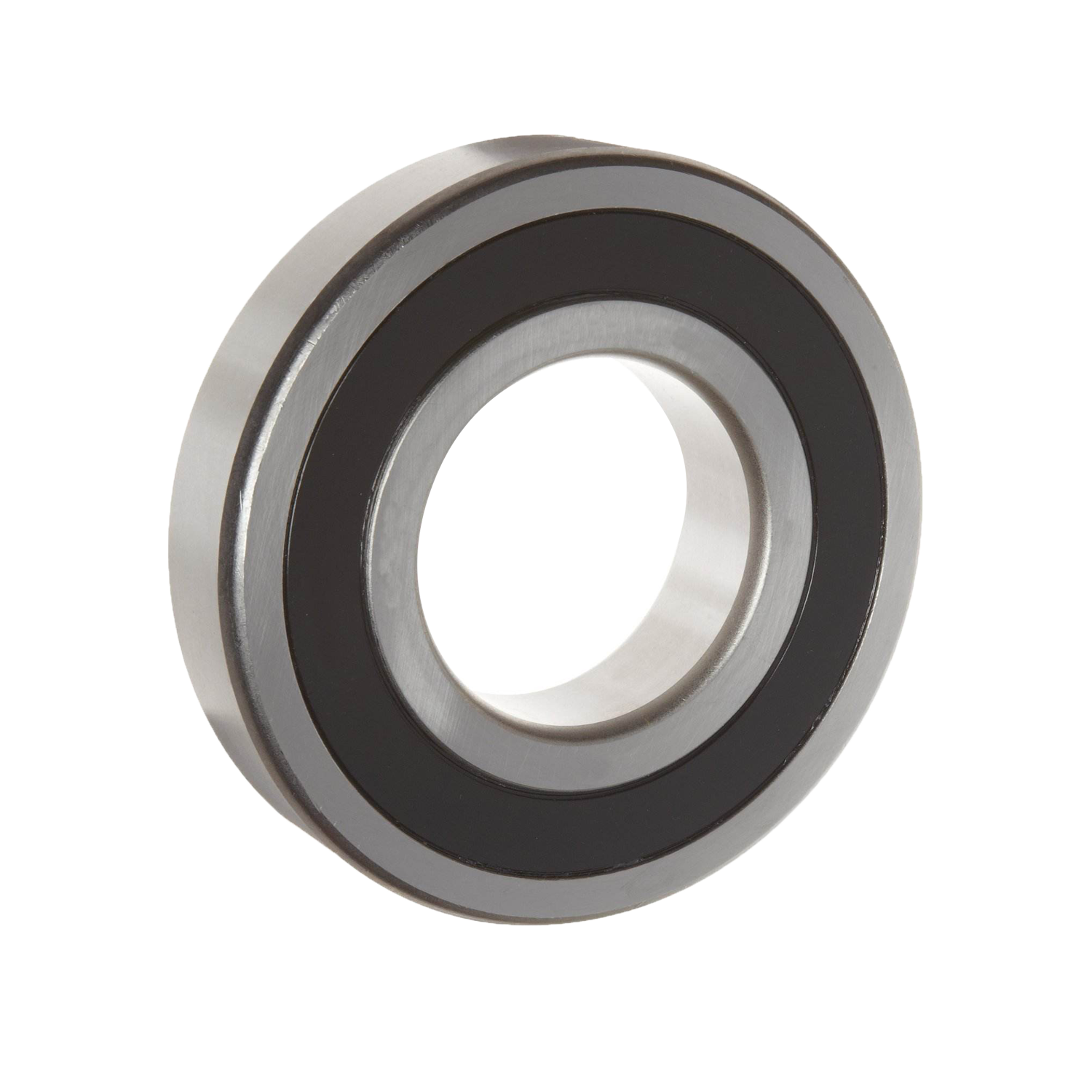

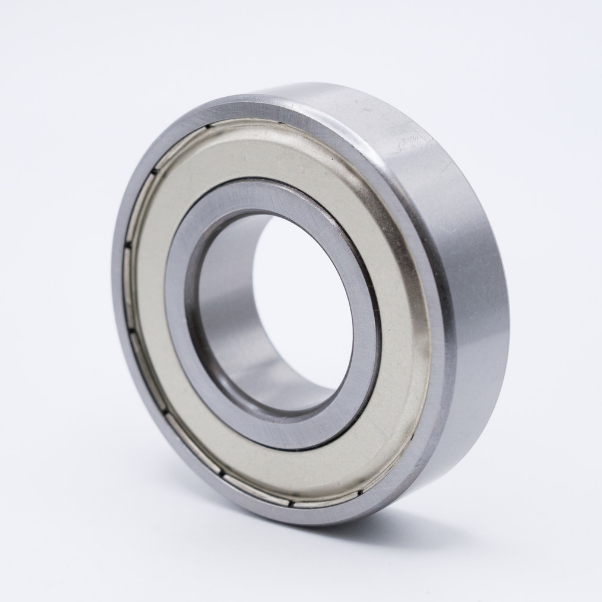

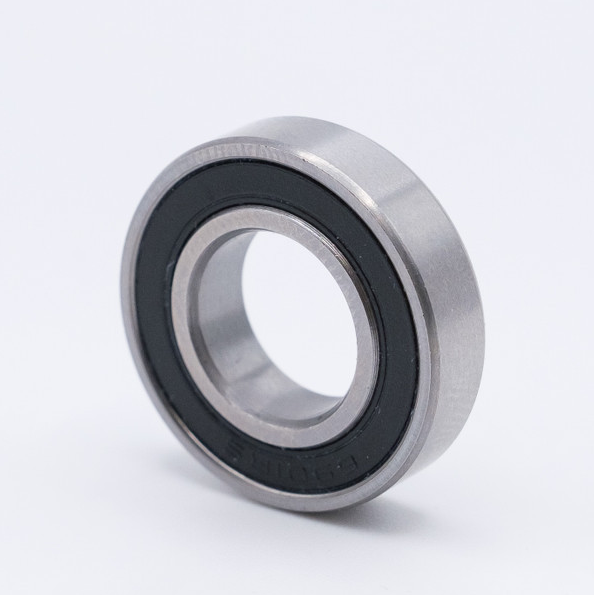

公制尺寸的滚珠轴承两侧均采用橡胶密封件制造，并预先用油脂润滑，因此交付后即可使用。我们的铬钢薄高速轻型滚珠轴承具有深槽几何形状和最小化的内圈和外圈，使该轴承成为空间有限的高速应用的理想选择，同时仍能承受轻径向和轴向载荷。
所属分类：微型球轴承
邮箱：vicky@atwbearings.com
在线询价
下载PDF

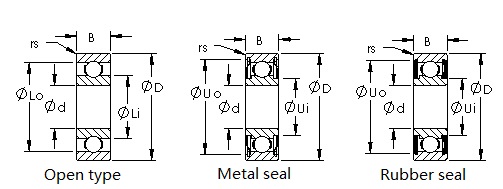

询价PDF轴承型号尺寸密封类型基本额定载荷最大极限速度 (X1000 RPM) 球数球直径重量(Kg)
dDB Cr(N)Cor(N)脂油
681 1mm 3mm 1mm Seal type includes open-type bearing 82 21 130 150 6 0.6000mm 0.03
691 1mm 4mm 1.6mm Seal type includes open-type bearing 120 30 100 120 5 0.8000mm 0.11
681X 1.5mm 4mm 1.2mm Seal types include metal seal and open-type bearin 95 26 100 120 7 0.6000mm 0.1
681XZZ 1.5mm 4mm 2mm Seal types include metal seal and open-type bearin 95 26 100 120 7 0.6000mm 0.14
691X 1.5mm 5mm 2mm Seal types include metal seal and open-type bearin 144 40 85 100 6 1.0000mm 0.2
691XZZ 1.5mm 5mm 2.6mm Seal types include metal seal and open-type bearin 144 40 85 100 6 0.6000mm 0.25
601X 1.5mm 6mm 2.5mm Seal types include metal seal and open-type bearin 281 79 75 90 6 1.2000mm 0.31
601XZZ 1.5mm 6mm 3mm Seal types include metal seal and open-type bearin 281 79 75 90 6 1.2000mm 0.4
682 2mm 5mm 1.5mm Seal types include metal seal and open-type bearin 144 40 85 100 6 0.8000mm 0.15
682ZZ 2mm 5mm 2.3mm Seal types include metal seal and open-type bearin 144 40 85 100 6 0.8000mm 0.2
MR52 2mm 5mm 2mm Seal types include metal seal and open-type bearin 144 40 85 100 6 0.8000mm 0.14
MR52ZZ 2mm 5mm 2.5mm Seal types include metal seal and open-type bearin 144 40 85 100 6 0.8000mm 0.2
692 2mm 6mm 2.3mm Seal types include metal seal, rubber seal and ope 281 79 75 90 6 1.2000mm 0.28
692-2RS 2mm 6mm 3mm Seal types include metal seal, rubber seal and ope 281 79 75 90 6 1.2000mm 0.35
692ZZ 2mm 6mm 3mm Seal types include metal seal, rubber seal and ope 281 79 75 90 6 1.2000mm 0.35
MR62 2mm 6mm 2.5mm Seal types include metal seal and open-type bearin 281 79 75 90 6 1.2000mm 0.28
MR62ZZ 2mm 6mm 2.5mm Seal types include metal seal and open-type bearin 281 79 75 90 6 1.2000mm 0.33
MR72 2mm 7mm 2.5mm Seal types include metal seal, rubber seal and ope 328 103 63 75 7 1.2000mm 0.43
MR72-2RS 2mm 7mm 3mm Seal types include metal seal, rubber seal and ope 328 103 63 75 7 1.2000mm 0.53
MR72ZZ 2mm 7mm 3mm Seal types include metal seal, rubber seal and ope 328 103 65 75 7 1.2000mm 0.53
602 2mm 7mm 2.8mm Seal types include metal seal, rubber seal and ope 328 103 60 71 7 1.2000mm 0.5
602-2RS 2mm 7mm 3.5mm Seal types include metal seal, rubber seal and ope 328 103 60 71 7 1.2000mm 0.6
602ZZ 2mm 7mm 3.5mm Seal types include metal seal, rubber seal and ope 328 103 60 71 7 1.2000mm 0.6
682X 2.5mm 6mm 1.8mm Seal types include metal seal and open-type bearin 178 59 71 80 8 0.8000mm 0.2
682XZZ 2.5mm 6mm 2.6mm Seal types include metal seal and open-type bearin 178 59 71 80 8 0.8000mm 0.35
692X 2.5mm 7mm 2.5mm Seal types include metal seal, rubber seal and ope 328 103 63 75 7 1.2000mm 0.4
692X-2RS 2.5mm 7mm 3.5mm Seal types include metal seal, rubber seal and ope 328 103 63 75 7 1.2000mm 0.55
692XZZ 2.5mm 7mm 3.5mm Seal types include metal seal, rubber seal and ope 328 103 63 75 7 1.2000mm 0.55
MR82X 2.5mm 8mm 2.5mm Seal type includes open-type bearing 474 144 60 67 6 1.5880mm 0.52
602X 2.5mm 8mm 2.8mm Seal types include metal seal and open-type bearin 469 142 60 71 6 1.5880mm 0.61
Previous123456Next

公制尺寸的滚珠轴承两侧均采用橡胶密封件制造，并预先用油脂润滑，因此交付后即可使用。我们的铬钢薄高速轻型滚珠轴承具有深槽几何形状和最小化的内圈和外圈，使该轴承成为空间有限的高速应用的理想选择，同时仍能承受轻径向和轴向载荷。
