67 Super Thin Series

Key Features6708-ZZ is a Thin High Speed Ball Bearing manufactured with Metal Shields on both sides and pre-lubricated Grease, allowing it to be ready for use upon delivery. Our 6700 Series Bearings are made from Chrome Steel offer …

Catagory: Thin Section Bearings

Email: vicky@atwbearings.com

Send Inquiry

Download PDF

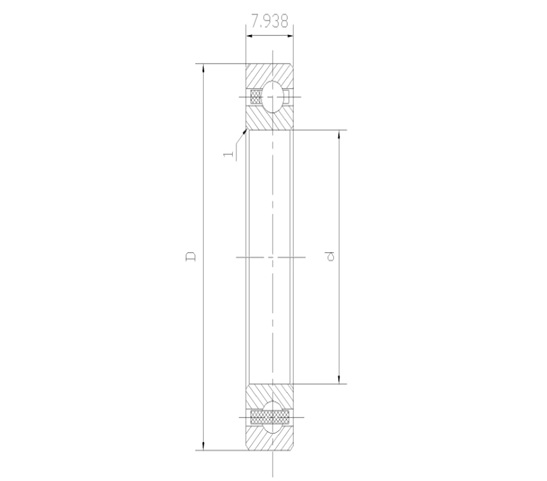

Technical diameters
Description

Inquiry	PDF	Bearing NO.	Shape Dimension								Basic Load Rating(N)		Weight
Inquiry	PDF	Bearing NO.	d(mm)	d(inch)	D(mm)	D(inch)	B(mm)	B(inch)	r min(mm)	r min(inch)	Dynamic( Cr)	Static( Cor)	(kg)
		6700	10	0.3937	15	0.5906	4	0.1575	0.1	0.0039	800	390	0.0019
		6701	12	0.4724	18	0.7087	4	0.1575	0.2	0.0079	910	530	0.0031
		6702	15	0.5906	21	0.8268	4	0.1575	0.2	0.0079	850	490	0.0036
		6703	17	0.6693	23	0.9055	4	0.1575	0.2	0.0079	960	610	0.0040
		6704	20	0.7874	27	1.0630	4	0.1575	0.2	0.0079	1030	720	0.0059
		6705	25	0.9843	32	1.2598	4	0.1575	0.2	0.0079	1090	830	0.0070
		6706	30	1.1811	37	1.4567	4	0.1575	0.2	0.0079	1170	980	0.0083
		6707	35	1.3780	44	1.7323	5	0.1969	0.3	0.0118	1850	1630	0.0150
		6708	40	1.5748	50	1.9685	6	0.2362	0.3	0.0118	2519	2234	0.0230
		6709	45	1.7717	55	2.1654	6	0.2362	0.3	0.0118	2577	2401	0.0250
		6710	50	1.9685	62	2.4409	6	0.2362	0.3	0.0118	2666	2636	0.0340

Key Features

6708-ZZ is a Thin High Speed Ball Bearing manufactured with Metal Shields on both sides and is pre-lubricated with Grease, allowing it to be ready for use upon delivery. Our 6700 Series Thin High Speed Ball Bearings are made from Chrome Steel and offer High Running Accuracy at High Speeds in both radial and axial directions while also saving space. The 6700 Series offers a larger cross-section, as opposed to the deep groove ball bearings, that allows it to endure these higher speeds.

Applications / Industries

6708-ZZ Thin High Speed Ball Bearings are used in Scanning Equipment, Navigation tools, Pressure-Regulating Systems, Antenna and Sun Protection Systems, Robotics, Speed Reducers, Radar Equipment, Optical Equipment, Slip Ring Assemblies and many more.
