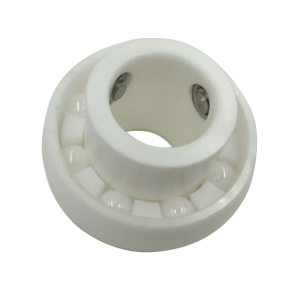

Ceramic Spherical Bearings

The insert bearings are the deep groove ball with wide inner rings. It inserts in housing working as a unit bearing. is mainly casting or pressed steel. bearing compact design perfect sealing devices. They can align easiness during …

Catagory: Ceramic Bearings

Email: vicky@atwbearings.com

Send Inquiry

Download PDF

Technical diameters
Description

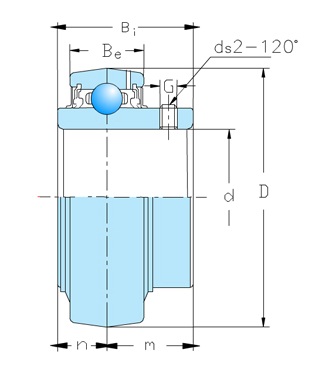

Inquiry	PDF	Bearing No.	Shaft Dia		Boundary dimensions(mm)							Basic load ratings		Weight(Kg)
Inquiry	PDF	Bearing No.	in.	mm	D	Bi	Be	n	m	G	ds	C	Co	Weight(Kg)
		UC201	-	12	47	31	16	12.7	18.3	5	M6x1.0	12890	6490	0.21
		UC201-8	1/2	-	47	31	16	12.7	18.3	5	1/4-28UNF	12890	6490	0.21
		UC202	-	15	47	31	16	12.7	18.3	5	M6x1.0	12890	6490	0.2
		UC202-10	5/8	-	47	31	16	12.7	18.3	5	1/4-28UNF	12890	6490	0.19
		UC203	-	17	47	31	16	12.7	18.3	5	M6x1.0	12890	6490	0.18
		UC204	-	20	47	31	16	12.7	18.3	5	M6x1.0	12890	6490	0.17
		UC204-12	3/4	-	47	31	16	12.7	18.3	5	1/4-28UNF	12890	6490	0.18
		UC205	-	25	52	34	17	14.3	19.7	5.5	M6x1.0	14000	7560	0.2
		UC205-14	7/8	-	52	34	17	14.3	19.7	5.5	1/4-28UNF	14000	7560	0.23
		UC205-15	15/16	-	52	34	17	14.3	19.7	5.5	1/4-28UNF	14000	7560	0.21
		UC205-16	1	-	52	34	17	14.3	19.7	5.5	1/4-28UNF	14000	7560	0.2
		UC206	-	30	62	38.1	19	15.9	22.2	6	M6x1.0	19510	11160	0.33
		UC206-17	1-1/16	-	62	38.1	19	15.9	22.2	6	1/4-28UNF	19510	11160	0.37
		UC206-18	1-1/8	-	62	38.1	19	15.9	22.2	6	1/4-28UNF	19510	11160	0.35
		UC206-19	1-3/16	-	62	38.1	19	15.9	22.2	6	1/4-28UNF	19510	11160	0.33
		UC206-20	1-1/4	-	62	38.1	19	15.9	22.2	6	1/4-28UNF	19510	11160	0.3
		UC207	-	35	72	42.9	20	17.5	25.4	6.5	M8x1.0	25640	15330	0.4
		UC207-20	1-1/4	-	72	42.9	20	17.5	25.4	6.5	5-16/24UNF	25640	15330	0.55
		UC207-21	1-5/16	-	72	42.9	20	17.5	25.4	6.5	5-16/24UNF	25640	15330	0.52
		UC207-22	1-3/8	-	72	42.9	20	17.5	25.4	6.5	5-16/24UNF	25640	15330	0.49
		UC207-23	1-7/16	-	72	42.9	20	17.5	25.4	6.5	5-16/24UNF	25640	15330	0.46
		UC208	-	40	80	49.2	21	19	30.2	8	M8x1.0	28890	17110	0.65
		UC208-24	1-1/2	-	80	49.2	21	19	30.2	8	5-16/24UNF	28890	17110	0.69
		UC208-25	1-9/16	-	80	49.2	21	19	30.2	8	5-16/24UNF	28890	17110	0.67
		UC209	-	45	85	49.2	22	19	30.2	8	M8x1.0	32670	18220	0.7
		UC209-26	1-5/8	-	85	49.2	22	19	30.2	8	5-16/24UNF	32670	18220	0.8
		UC209-27	1-11/16	-	85	49.2	22	19	30.2	8	5-16/24UNF	32670	18220	0.76
		UC209-28	1-3/4	-	85	49.2	22	19	30.2	8	5-16/24UNF	32670	18220	0.71
		UC210	-	50	90	51.6	24	19	32.6	9	M10x1.25	35110	20840	0.8
		UC210-30	1-7/8	-	90	51.6	24	19	32.6	9	3/8-24UNF	35110	20840	0.87
Previous12 Next

The insert bearings are the deep groove ball bearings with wide inner rings. It inserts in housing working as a unit bearing. The housing is mainly casting or pressed steel. The bearing unit is compact in design with perfect sealing devices. They can align with easiness during operation and can be conveniently mounted or dismounted.
