Inch Deep Groove Ball bearings 16 Series-Products-Shanghai ATW Bearings Production Co., Ltd.

Inch Deep Groove Ball bearings 16 Series

Send Inquiry

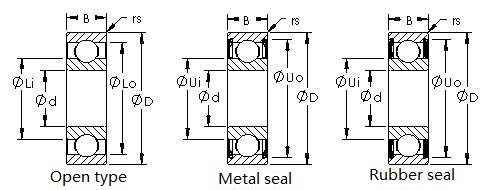

Inquiry	PDF	Bearing Number	Dimensions			Basic Load Rating
Inquiry	PDF	Bearing Number	d	D	B	Cr(N)	Cor(N)
		1601	4.763 mm	17.463 mm	6.35 mm	600	220
		1601 2rs	4.763 mm	17.463 mm	7.938 mm	600	220
		1601zz	4.763 mm	17.463 mm	6.35 mm	600	220
		1602	6.35 mm	17.463 mm	6.35 mm	635	240
		1602 2rs	6.35 mm	17.463 mm	7.938 mm	635	240
		1602zz	6.35 mm	17.463 mm	6.35 mm	635	240
		1603	7.938 mm	22.225 mm	7.142 mm	745	310
		1603 2rs	7.938 mm	22.225 mm	8.733 mm	745	310
		1603zz	7.938 mm	22.225 mm	7.142 mm	745	310
		1604	9.525 mm	22.225 mm	7.142 mm	750	320
		1604 2rs	9.525 mm	22.225 mm	8.733 mm	750	320
		1604zz	9.525 mm	22.225 mm	7.142 mm	750	320
		1605	7.938 mm	23.017 mm	7.938 mm	745	315
		1605 2rs	7.938 mm	23.017 mm	7.938 mm	745	315
		1605zz	7.938 mm	23.017 mm	7.938 mm	745	315
		1606	9.525 mm	23.017 mm	7.938 mm	750	320
		1606 2rs	9.525 mm	23.017 mm	7.938 mm	750	320
		1606zz	9.525 mm	23.017 mm	7.938 mm	750	320
		1607	11.113 mm	23.017 mm	7.938 mm	1015	430
		1607 2rs	11.113 mm	23.017 mm	7.938 mm	1015	430
		1607zz	11.113 mm	23.017 mm	7.938 mm	1015	430
		1614	9.525 mm	28.575 mm	9.525 mm	1140	520
		1614 2rs	9.525 mm	28.575 mm	9.525 mm	1140	520
		1614zz	9.525 mm	28.575 mm	9.525 mm	1140	520
		1615	11.113 mm	28.575 mm	9.525 mm	1145	530
		1615 2rs	11.113 mm	28.575 mm	9.525 mm	1145	530
		1615zz	11.113 mm	28.575 mm	9.525 mm	1145	530
		1616	12.7 mm	28.575 mm	9.525 mm	1150	450
		1616 2rs	12.7 mm	28.575 mm	9.525 mm	1150	450
		1616zz	12.7 mm	28.575 mm	9.525 mm	1150	450
