Inch Miniature Flange Bearing

Inch Miniature Flange Bearing

Catagory: Miniature Flanged Bearing
Email: vicky@atwbearings.com
Send Inquiry
Download PDF

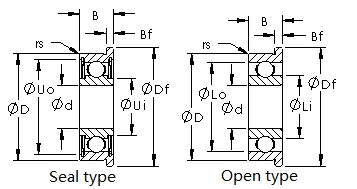

InquiryPDFBearing NumberDimensions Basic Load Rating Limiting Speed (X1000 RPM) Weight(Kg)
dDDfBWfs Cr(N)Cor(N)GreaseOil
FR0 1.191mm 3.967mm 5.156mm 1.588mm 0.330mm 21 6 110 130 0.12
FR0zz 1.191mm 3.967mm 5.156mm 2.38mm 0.787mm 21 6 110 130 0.2
FR1 1.397mm 4.763mm 5.944mm 1.984mm 0.584mm 44 12 90 110 0.19
FR1zz 1.397mm 4.763mm 5.944mm 2.779mm 0.787mm 44 12 90 110 0.25
FR1-4 1.984mm 6.35mm 7.518mm 2.38mm 0.584mm 54 17 67 80 0.46
FR1-4 2RS 1.984mm 6.35mm 7.518mm 3.571mm 0.787mm 54 17 67 80 0.61
FR1-4zz 1.984mm 6.35mm 7.518mm 3.571mm 0.787mm 54 17 67 80 0.61
FR1-5 2.38mm 7.938mm 9.119mm 2.779mm 0.584mm 106 32 60 95 0.67
FR1-5 2RS 2.38mm 7.938mm 9.119mm 3.571mm 0.787mm 106 32 60 95 1.25
FR1-5zz 2.38mm 7.938mm 9.119mm 3.571mm 0.787mm 106 32 60 95 1.25
FR133 2.38mm 4.763mm 5.944mm 1.588mm 0.457mm 36 11 80 95 0.13
FR133zz 2.38mm 4.763mm 5.944mm 2.38mm 0.787mm 28 10 80 96 0.21
FR144 3.175mm 6.35mm 7.518mm 2.38mm 0.584mm 54 17 67 80 0.33
FR144zz 3.175mm 6.35mm 7.518mm 2.779mm 0.787mm 54 17 67 80 0.48
FR2 3.175mm 9.525mm 11.176mm 3.967mm 0.762mm 121 39 56 67 1.2
FR2 2RS 3.175mm 9.525mm 11.176mm 3.967mm 0.762mm 121 39 56 67 1.53
FR2zz 3.175mm 9.525mm 11.176mm 3.967mm 0.762mm 121 39 56 67 1.53
FR2-5 3.175mm 7.938mm 9.119mm 2.779mm 0.584mm 107 32 60 67 0.57
FR2-5 2RS 3.175mm 7.938mm 9.119mm 3.571mm 0.787mm 107 32 60 67 0.84
FR2-5zz 3.175mm 7.938mm 9.119mm 3.571mm 0.787mm 107 32 60 67 0.84
FR2-6 3.175mm 9.525mm 10.719mm 2.779mm 0.584mm 122 41 53 63 1.05
FR2-6 2RS 3.175mm 9.525mm 10.719mm 3.571mm 0.787mm 122 41 53 63 1.35
FR2-6zz 3.175mm 9.525mm 10.719mm 3.571mm 0.787mm 122 41 53 63 1.35
FR155 3.967mm 7.938mm 9.119mm 2.779mm 0.584mm 69 27 53 63 0.56
FR155zz 3.967mm 7.938mm 9.119mm 3.175mm 0.914mm 69 27 53 63 0.72
FR156 4.763mm 7.938mm 9.119mm 2.779mm 0.584mm 69 27 53 63 0.47
FR156 2RS 4.763mm 7.938mm 9.119mm 3.175mm 0.914mm 69 27 53 63 0.56
FR156zz 4.763mm 7.938mm 9.119mm 3.175mm 0.914mm 69 27 53 63 0.56
FR166 4.763mm 9.525mm 10.719mm 3.175mm 0.584mm 136 49 50 60 0.9
FR166 2RS 4.763mm 9.525mm 10.719mm 3.175mm 0.787mm 136 49 50 60 0.97
