Metric Deep Groove Ball Bearings

Send Inquiry

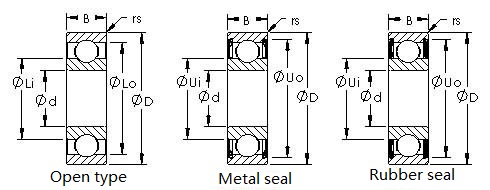

Inquiry	PDF	Bearing Number	Dimensions			Chamfer(min)	Basic Load Rating		Limiting Speed (X1000 RPM)		Weight(Kg)
Inquiry	PDF	Bearing Number	d	D	B	(rs)	Cr(N)	Cor(N)	Grease	Oil	Weight(Kg)
		6000	10mm	26mm	8mm	0.3	4550	1950	31	36	19
		6000 2RS	10mm	26mm	8mm	0.3	4550	1950	31	36	19
		6000zz	10mm	26mm	8mm	0.3	4550	1950	31	36	19
		6200	10mm	30mm	9mm	0.6	5100	2400	24	29	32
		6200 2RS	10mm	30mm	9mm	0.6	5100	2400	24	29	32
		6200zz	10mm	30mm	9mm	0.6	5100	2400	24	29	32
		6300	10mm	35mm	11mm	0.6	8100	3450	22	27	53
		6300 2RS	10mm	35mm	11mm	0.6	8100	3450	22	27	53
		6300zz	10mm	35mm	11mm	0.6	8100	3450	22	27	53
		6001	12mm	28mm	8mm	0.3	5100	2400	27	32	22
		6001 2RS	12mm	28mm	8mm	0.3	5100	2400	27	32	22
		6001zz	12mm	28mm	8mm	0.3	5100	2400	27	32	22
		6201	12mm	32mm	10mm	0.6	6800	3050	22	27	37
		6201 2RS	12mm	32mm	10mm	0.6	6800	3050	22	27	37
		6201zz	12mm	32mm	10mm	0.6	6800	3050	22	27	37
		6301	12mm	37mm	12mm	1	9700	4200	20	25	60
		6301 2RS	12mm	37mm	12mm	1	9700	4200	20	25	60
		6301zz	12mm	37mm	12mm	1	9700	4200	20	25	60
		6002	15mm	32mm	9mm	0.3	5600	2850	23	27	30
		6002 2RS	15mm	32mm	9mm	0.3	5600	2850	23	27	30
		6002zz	15mm	32mm	9mm	0.3	8100	3450	23	27	30
		6202	15mm	35mm	11mm	0.6	7650	3750	20	24	45
		6202 2RS	15mm	35mm	11mm	0.6	7650	3750	20	24	45
		6202zz	15mm	35mm	11mm	0.6	7650	3750	20	24	45
		6302	15mm	42mm	13mm	1	11400	5450	17	20	82
		6302 2RS	15mm	42mm	13mm	1	11400	5450	17	20	82
		6302zz	15mm	42mm	13mm	1	11400	5450	17	20	82
		6003	17mm	35mm	10mm	0.3	6000	3250	21	25	39
		6003 2RS	17mm	35mm	10mm	0.3	6000	3250	21	25	39
		6003zz	17mm	35mm	10mm	0.3	6000	3250	21	25	39
