Metric Miniature Flanged Bearing

Metric Miniature Flanged Bearing

Miniature Ball Bearings are used in a range of applications from High Speed Electric Motors to The Paper Industry, Power Tools, Wash-Down Conveyors, Wheel Hub Assemblies, Textile Packaging Pumps, Beam Bearing, Clutches, Drives, Gear …
Catagory: Miniature Flanged Bearing
Email: vicky@atwbearings.com
Send Inquiry
Download PDF

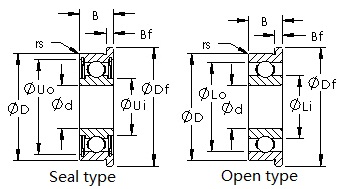

InquiryPDFBearing NumberDimensions Basic Load Rating Limiting Speed (X1000 RPM) Steel ball Weight(Kg)
dDDfBWfs Cr(N)Cor(N)GreaseOilNumberDiameter
F681 1.0000mm 3.0000mm 3.8000mm 1.0000mm 0.300mm 82 21 130 150 6 0.6000mm 0.04
F691 1.0000mm 4.0000mm 5.0000mm 1.6000mm 0.500mm 120 30 100 120 5 0.8000mm 0.14
MF41x 1.2000mm 4.0000mm 4.8000mm 1.8000mm 0.400mm 95 26 110 130 7 0.6000mm 0.12
F681x 1.5000mm 4.0000mm 5.0000mm 1.2000mm 0.400mm 95 26 100 120 7 0.6000mm 0.12
F681xzz 1.5000mm 4.0000mm 5.0000mm 2.0000mm 0.600mm 95 26 100 120 7 0.6000mm 0.17
F691x 1.5000mm 5.0000mm 6.5000mm 2.0000mm 0.600mm 144 40 85 100 6 1.0000mm 0.26
F691xzz 1.5000mm 5.0000mm 6.5000mm 2.6000mm 0.800mm 144 40 85 100 6 1.0000mm 0.33
F601x 1.5000mm 6.0000mm 7.5000mm 2.5000mm 0.600mm 281 79 75 90 6 1.2000mm 0.38
F601xzz 1.5000mm 6.0000mm 7.5000mm 3.0000mm 0.800mm 281 79 75 90 6 1.2000mm 0.5
F682 2.0000mm 5.0000mm 6.1000mm 1.5000mm 0.500mm 144 40 85 100 6 0.8000mm 0.19
F682zz 2.0000mm 5.0000mm 6.1000mm 2.3000mm 0.600mm 144 40 85 100 6 0.8000mm 0.24
MF52 2.0000mm 5.0000mm 6.2000mm 2.0000mm 0.600mm 144 40 85 100 6 0.8000mm 0.19
MF52zz 2.0000mm 5.0000mm 6.2000mm 2.5000mm 0.600mm 144 40 85 100 6 0.8000mm 0.25
F692 2.0000mm 6.0000mm 7.5000mm 2.3000mm 0.600mm 281 79 75 90 6 1.2000mm 0.35
F692 2rs 2.0000mm 6.0000mm 7.5000mm 3.0000mm 0.800mm 281 79 75 90 6 1.2000mm 0.35
F692zz 2.0000mm 6.0000mm 7.5000mm 3.0000mm 0.800mm 281 79 75 90 6 1.2000mm 0.45
MF62 2.0000mm 6.0000mm 7.2000mm 2.5000mm 0.600mm 281 79 75 90 6 1.2000mm 0.34
MF62zz 2.0000mm 6.0000mm 7.2000mm 2.5000mm 0.600mm 281 79 75 90 6 1.2000mm 0.45
MF72 2.0000mm 7.0000mm 8.2000mm 2.5000mm 0.600mm 328 103 63 75 7 1.2000mm 0.5
MF72 2rs 2.0000mm 7.0000mm 8.2000mm 3.0000mm 0.600mm 328 103 63 75 7 1.2000mm 0.6
MF72zz 2.0000mm 7.0000mm 8.2000mm 3.0000mm 0.600mm 328 103 63 75 7 1.2000mm 0.6
F602 2.0000mm 7.0000mm 8.5000mm 2.8000mm 0.700mm 328 103 60 71 7 1.2000mm 0.6
F602zz 2.0000mm 7.0000mm 8.5000mm 3.5000mm 0.900mm 328 103 60 71 7 1.2000mm 0.73
F682x 2.5000mm 6.0000mm 7.1000mm 1.8000mm 0.500mm 178 59 71 80 8 0.8000mm 0.24
F682xzz 2.5000mm 6.0000mm 7.1000mm 2.6000mm 0.800mm 178 59 71 80 8 0.8000mm 0.42
F692x 2.5000mm 7.0000mm 8.5000mm 2.5000mm 0.700mm 320 103 63 75 7 1.2000mm 0.5
F692x 2rs 2.5000mm 7.0000mm 8.5000mm 3.5000mm 0.900mm 328 103 63 75 7 1.2000mm 0.68
F692xzz 2.5000mm 7.0000mm 8.5000mm 3.5000mm 0.900mm 328 103 63 75 7 1.2000mm 0.68
MF82x 2.5000mm 8.0000mm 9.2000mm 2.5000mm 0.600mm 180 67 71 80 7 3.9690mm 0.42
F602x 2.5000mm 8.0000mm 9.5000mm 2.8000mm 0.700mm 469 142 60 71 6 1.5880mm 0.72
Previous123456Next

Miniature Ball Bearings are used in a range of applications from High Speed Electric Motors to The Paper Industry, Power Tools, Wash-Down Conveyors, Wheel Hub Assemblies, Textile Industry, Packaging Industry, Pumps, Beam Ball Bearing, Clutches, Drives, Gear Boxes, RC Cars, RC Planes, RC Helicopters and many more.
