SMF Series Flanged Miniature Ball Bearing that can run at higher temperatures while also being able to withstand corrosion, moderate radial loads and axial loads. Our Outer Ring have a Stainless-Steel Flange located on the outer ring, …
Catagory: Flange Bearings
Email: vicky@atwbearings.com
Send Inquiry
Download PDF

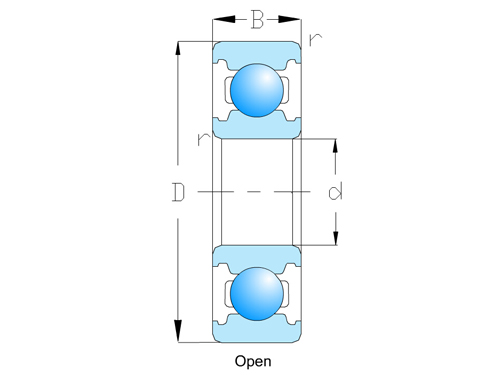

InquiryPDFBearing NO.Dimension(mm)Basic Load Rating(N) Limited speed(rpm)Weight
d(mm)D(mm)D1D2B(mm) B1C1C2r min(mm) Dynamic( Cr)Static( Cor)Grease(ZZ)Oil(OPEN)(kg)
F681 1 3 3.8 - 1 - 0.3 - 0.05 80 23 150000 0.04
F691 1 4 5 - 1.6 - 0.5 - 0.1 140 36 120000 0.14
MF41 X 1.2 4 4.8 - 1.8 - 0.4 - 0.1 138 35 130000 0.12
F681XF 1.5 4 5 5 1.2 2 0.4 0.6 0.15 112 33 100000 120000 0.09
F691XF 1.5 5 6.5 6.5 2 2.6 0.6 0.8 0.15 237 69 85000 100000 0.23
F601XF 1.5 6 7.5 7.5 2.5 3 0.6 0.8 0.15 330 98 75000 90000 0.42
F682 2 5 6.1 6.1 1.5 2.3 0.5 0.6 0.08 169 50 85000 100000 0.16
MF52 B 2 5 6.2 6.2 2 2.5 0.6 0.6 0.1 187 58 85000 100000 0.21
F692 2 6 7.5 7.5 2.3 3 0.6 0.8 0.15 330 98 75000 90000 0.35
MF62 2 6 7.2 - 2.5 - 0.6 - 0.15 330 98 90000 0.36
MF72 2 7 8.2 8.2 2.5 3 0.6 0.6 0.15 385 127 63000 75000 0.52
MF602 2 7 8.5 8.5 2.8 3.5 0.7 0.9 0.15 385 127 63000 75000 0.6
F682XF 2.5 6 7.1 7.1 1.8 2.6 0.5 0.8 0.08 208 74 71000 80000 0.25
F692XF 2.5 7 8.5 8.5 2.5 3.5 0.7 0.9 0.15 385 127 63000 75000 0.51
MF82X 2.5 8 9.2 - 2.5 - 0.6 - 0.2 560 179 67000 0.62
F602XF 2.5 8 9.5 9.5 2.8 4 0.7 0.9 0.15 550 175 60000 71000 0.74
MF63 3 6 7.2 7.2 2 2.5 0.6 0.6 0.1 208 74 71000 80000 0.27
F683A 3 7 8.1 8.1 2 3 0.5 0.8 0.1 390 130 63000 75000 0.37
MF83 3 8 9.2 9.2 2.5 3 0.6 - 0.15 560 179 60000 67000 0.56
F693 3 8 9.5 9.5 3 4 0.7 0.9 0.15 560 179 60000 67000 0.7
MF93 3 9 10.2 10.6 2.5 4 0.6 0.8 0.2 570 187 56000 67000 0.81
F603 3 9 10.5 10.5 3 5 0.7 1 0.15 570 187 56000 67000 1
F623 3 10 11.5 11.5 4 4 1 1 0.15 630 218 50000 60000 1.85
F633 3 13 15 15 5 5 1 1 0.2 1300 485 36000 43000 3.73
MF74 4 7 8.2 8.2 2 2.5 0.6 0.6 0.1 310 115 60000 67000 0.29
MF84 8 9.2 9.2 2 3 0.6 0.6 0.15 395 139 56000 67000 0.44
F684 9 10.3 10.3 2.5 4 0.6 1 0.15 640 225 53000 63000 0.7
MF104B 10 11.2 11.6 3 4 0.6 0.8 0.2 710 270 50000 60000 1.13
F694 11 12.5 12.5 4 4 1 1 0.15 960 345 48000 56000 1.91
F604 12 13.5 13.5 4 4 1 1 0.2 960 345 48000 56000 2.53
Previous12Next

SMF Series Flanged Miniature Ball Bearing that can run at higher temperatures while also being able to withstand corrosion, moderate radial loads and moderate axial loads. Our SMF Series Flanged Outer Ring have a Stainless-Steel Flange located on the outer ring, the flange extends around the entire circumference of the outer ring allowing for improved running accuracy and easier locating on a housing while also preventing any axial movement of the bearing in the event of a thrust load being put onto it.
