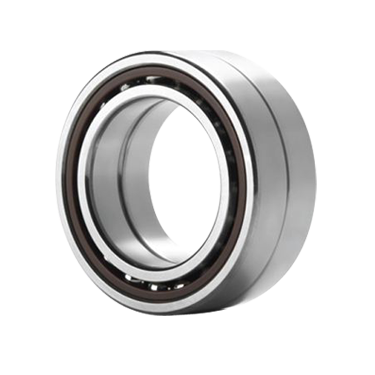

Stainless Steel Angular Contact Ball Bearings

Catagory: Stainless Steel Ball Bearings

Email: vicky@atwbearings.com

Send Inquiry

Download PDF

Technical diameters
Description

Inquiry	PDF	Bearing Designation	Dimension(mm)					Mounting dimensions			Weight
Inquiry	PDF	Bearing Designation	d	D	B	r min	r1 min	da(min)	Da(max)	ra(max)	(Kg)
		SS7900	10	22	6	0.3	0.15	12.5	19.5	0.3	0.0091
		SS7000	10	26	8	0.3	0.15	12.5	23.5	0.3	0.0182
		SS7200	10	30	9	0.6	0.3	15	25	0.6	0.0325
		SS7300	10	35	11	0.6	0.3	15	30	0.6	0.052
		SS7901	12	24	6	0.3	0.15	14.5	21.5	0.3	0.0104
		SS7001	12	28	8	0.3	0.15	14.5	25.5	0.3	0.0221
		SS7201	12	32	10	0.6	0.3	17	27	0.6	0.0364
		SS7301	12	37	12	1	0.6	18	31	1	0.0598
		SS7902	15	28	7	0.3	0.15	17.5	25.5	0.3	0.0156
		SS7002	15	32	9	0.3	0.15	17.5	29.5	0.3	0.0312
		SS7202	15	35	11	0.6	0.3	20	30	0.3	0.0455
		SS7302	15	42	13	1	0.6	21	36	1	0.0832
		SS7903	17	30	7	0.3	0.15	19.5	27.5	0.3	0.0169
		SS7003	17	35	10	0.3	0.15	19.5	32.5	0.3	0.0416
		SS7203	17	40	12	0.6	0.3	22	35	0.6	0.0676
		SS7303	17	47	14	1	0.6	23	41	1	0.1131
		SS7904	20	37	9	0.3	0.15	22.5	34.5	0.3	0.0364
		SS7004	20	42	12	0.6	0.3	25	37	0.6	0.0676
		SS7204	20	47	14	1	0.6	26	41	1	0.1066
		SS7304	20	52	15	1.1	0.6	27	45	1	0.143
		SS7905	25	42	9	0.3	0.15	27.5	39.5	0.3	0.0416
		SS7005	25	47	12	0.6	0.3	30	42	0.6	0.0793
		SS7205	25	52	15	1	0.6	31	46	1	0.1287
		SS7305	25	62	17	1.1	0.6	32	55	1	0.234
		SS7906	30	47	9	0.3	0.15	32.5	44.5	1	0.052
		SS7006	30	55	13	1	0.6	36	49	1	0.1157
		SS7206	30	62	16	1	0.6	36	56	1	0.195
		SS7306	30	72	19	1.1	0.6	37	65	1	0.351
		SS7907	35	55	10	0.6	0.3	40	50	0.6	0.0754
		SS7007	35	62	14	1	0.6	41	56	1	0.156
Previous12 3 Next

Our stainless steel ball bearings are corrosion-resistant, making them ideal for use in harsh environments, such as marine applications, food processing plants, and chemical facilities. In addition, our stainless steel ball bearings offer excellent durability, ensuring that they will provide long-lasting performance and reliability, even under heavy loads or extreme temperatures.
